Fully Automatic Window Patching Machine

Name: YOCO RT-WP Series, Fully Automatic Window Patching Machine - YCG14
SKU: YCG14

YOCO RT-WP Series, Fully Automatic Window Patching Machine – YCG14

$165,000.00

YOCO

RT-WP Series

New

The YOCO RT-WP Series consists of the RT-WP-1100, 36″ x 43″ Window Patcher with single or dual lane capabilities; the RT-WP-800, 27″ x 32″ Window Patcher with single lane capabilities; and the RT-WP-600, 20″ x 24″ Window Patcher with single lane capabilities.

In Stock Inventory

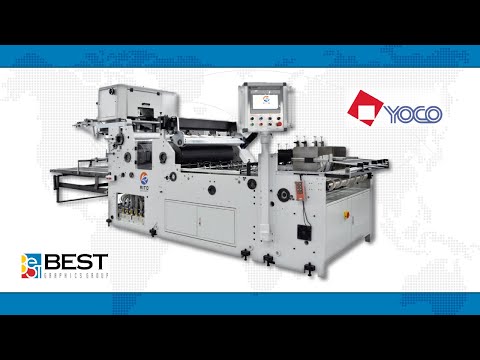

Watch Video

Item Number: YCG14 Category: Window Patching

Overview
Technical
Video
Manufacturer
Resources

New! YOCO RT-WP Fully Automatic Window Patching Machine –

Modernize your Folding Carton business with servo-driven Window Patching automation from YOCO. Affordable. Reliable. Quicker in setup.

Windowing, or Window Patching, Production Process –

The RT-WP Series automatic window patching machine completes the processing by paper feeding, alignment, gluing, film patching, and paper delivery.

YOCO’s Windowing Machine Equipment Details –

Through the PLC program, adjust the machine operation to use single-speed mode or two-speed mode.
When the paper length is less than or equal to 450m, the two-speed mode is adopted, that is, the glue roller can walk one circle and two sheets of paper; when the paper length is greater than 450, the single-speed mode is adopted, that is, the glue roller can walk one circle and one sheet of paper, which can greatly improve work efficiency

YOCO Fully Automatic Window Patching Machine Continued –

When the paper is misplaced or double-sided, the machine can be automatically shut down through the electric eye detection on the machine
Through the lower plate angle on the HMI, the gluing and film of the machine can be controlled, that is, when the paper breaks, the machine will automatically not glue and film the paper, so as to prevent the glue from sticking to the belt, and save time on cleaning up
The gluing roller, suction roller, cutter roller and gluing part are all controlled by servo motors, which can be adjusted accurately through PLC programs, eliminating the need for manual adjustment and improving work efficiency

	RT-WP-1100	RT-WP-800	RT-WP-600
Max. Mechanical Speed — Single Lane	10,000 Pieces per Hour	10,000 Pieces per Hour	6,000 Pieces per Hour
Max. Mechanical Speed — Double Lane	20,000 Pieces per Hour	N/A	N/A
Max. Sheet Size — Single Lane	920 x 1100 mm \| 36.22″ x 43.31″	680 x 800 mm \| 26.77″ x 31.50″	520 x 600 mm \| 20.47″ x 23.62″
Max. Sheet Size — Double Lane	450 x 1100 mm \| 17.72″ x 43.31″	N/A	N/A
Min. Sheet Size	160 x 160 mm \| 6.30″ x 6.30″	150 x 150 mm \| 5.91″ x 5.91″	80 x 100 mm \| 3.15″ x 3.94″
Cardboard	200–1,000 gsm	200–2,000 gsm	200–2,000 gsm
Max. Corrugated Board	3 mm \| 0.12″	5 mm \| 0.20″	6 mm \| 0.24″
Max. Window Size	600 x 780 mm \| 23.62″ x 30.71″	350 x 400 mm \| 13.78″ x 15.75″	400 x 400 mm \| 15.75″ x 15.75″
Min. Window Size	40 x 40 mm \| 1.57″ x 1.57″	30 x 50 mm \| 1.18″ x 1.97″	30 x 45 mm \| 1.18″ x 1.77″
Film Thickness	0.03–0.20 mm	0.03–0.25 mm	0.03–0.25 mm
Machine Weight	3,300 kg \| 7,275 lbs.	1,850 kg \| 4,080 lbs.	2,800 kg \| 6,175 lbs.
Machine Dimensions	16.2′ L x 6.4′ W x 5.2′ H	17.1′ L x 5.0′ W x 5.7′ H	14.8′ L x 4.9′ W x 5.6′ H

With an over 100-year legacy, The YOCO Group — originally founded under the Yawa brand — is a market leader and one China’s top three Auto-Platen Die Cutter manufacturers. Their product range includes Automatic Die Cutters in (4) sizes — 76cm (30″), 106cm (42″), 145cm (57″) and 165cm (65″). Also included in their portfolio are Die Cutters with Foil Stamping and Stripping capabilities in 76cm, 106cm, & 145cm size with an optional (5 minute foil cassette system). For quick changeover from dedicated Foil Stamping to Die Cutting & Stripping, offering dual utility in one one machine. YOCO also offers dedicated offline blanking machinery in 106cm formats. Their factory, located in Shanghai, China, spans over 320,000 square feet. Their products are sold both domestically and internationally, with over 60% exported. Currently, more than 1,000 of their machines are operating worldwide. Click here to view YOCO’s Partners Page for more information!
