Double Lane Tray Forming Machine

Name: YOCO L1000, Double Lane Tray Forming Machine - YCG16
SKU: YGC16

YOCO L1000, Double Lane Tray Forming Machine – YCG16

$0.00

YOCO

L1000

New

In Stock Inventory

Item Number: YGC16 Category: Tray Forming

Overview
Technical
Video
Manufacturer
Resources

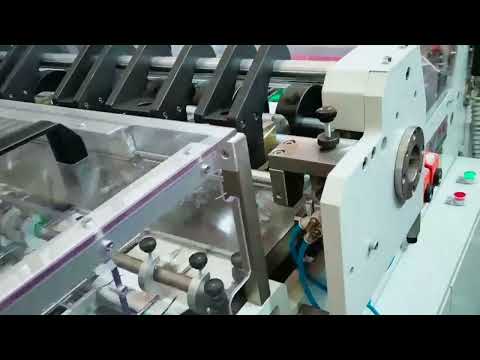

Strong side frames ensure a robust machine with low-noise operation
Thick, reinforced plastic covers enhance safety and provide clear visibility of machine operation
Adjustable settings allow precise glue point control
Easy adjustments and minimal tool requirements simplify operation
A specialized design and carefully selected components ensure accurate and reliable control
Switches and sensors protect both the operator and the machine

The YOCO L1000 is available in three different configurations: the L1000-A, which can only make the same box type on the two lanes at the same time; the L1000-B, which can make the different box types on the two lanes at the same time, and the L1000-C, which adopts a mechanical device to control the punching head.

Lanes	Dual Lane
Max. Speed	400 Pieces per Minute
Blank length (L)	100 – 450 mm \| 3.94″ – 17.72″
Blank width (B)	100 – 450 mm \| 3.94″ – 17.72″
Side flaps (H)	15 – 260 mm \| 0.59″ – 10.24″
Side flaps + lid (H1)	50 – 260 mm \| 1.97″ – 10.24″
Conicity	5 to 40 Degrees
Paper Board	200 – 600 gsm
Corrugated Board	Less than 1.5 mm
Footprint	13.1′ x 4.6′

With an over 100-year legacy, The YOCO Group — originally founded under the Yawa brand — is a market leader and one China’s top three Auto-Platen Die Cutter manufacturers. Their product range includes Automatic Die Cutters in (4) sizes — 76cm (30″), 106cm (42″), 145cm (57″) and 165cm (65″). Also included in their portfolio are Die Cutters with Foil Stamping and Stripping capabilities in 76cm, 106cm, & 145cm size with an optional (5 minute foil cassette system). For quick changeover from dedicated Foil Stamping to Die Cutting & Stripping, offering dual utility in one one machine. YOCO also offers dedicated offline blanking machinery in 106cm formats. Their factory, located in Shanghai, China, spans over 320,000 square feet. Their products are sold both domestically and internationally, with over 60% exported. Currently, more than 1,000 of their machines are operating worldwide. Click here to view YOCO’s Partners Page for more information!

Layout

Tray Forming

YOCO L1000-A, Tray Former

View Document
