Automatic Pile Turner with Aeration

YOCO PT Series, Automatic Pile Turner with Aeration - YCG10

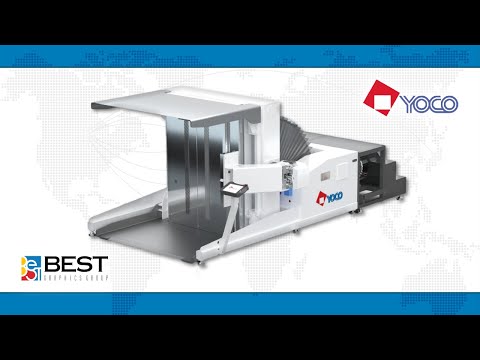

YOCO PT Series, Automatic Pile Turner with Aeration – YCG10

$0.00

YOCO

PT Series

New

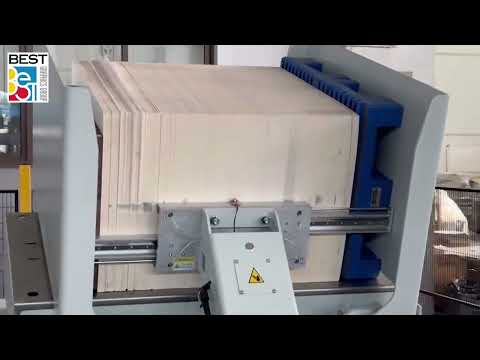

The pile turner  is used to turn over paper piles when printing on both sides. Besides,it Allows operators to quickly change pallets and align and condition piles in a time-saving way,eliminates ink odor and removes the dust by aeration. The pile turners are invaluable in replacing manpower, improving productivity and printing quality, and separating sheets to avoid misfeeds in paper handling equipment.

In Stock Inventory

Request a Quote
Save for Later
Watch Video
Item Number: YCG10 Categories:

Equipped with:

  • 4 automatic operation program modes
  • Side gauge automatic moving system
  • Human-machine interface testing and parameter debugging system
  • Cardboard centering function
  • Wireless remote control system
  • Operation warning system
  • Hair dryer non-winding coupling system
  • Vibration stepless frequency modulation system
  • A hair dryer stepless pressure regulation system
  • Hydraulic non-dimensional winding coupling system
  • Digital clamping pressure control system
  • A stepless speed regulation system for blowing speed
  • Upper and lower cardboard subtraction system
  • power-off automatic program memory system

PT-127APT-147APT-172A
Max. Sheet Size800 x 1200 mm | 31.50″ x 47.24″1050 x 1450 mm | 41.34″ x 57.09″1200 x 1650 mm | 47.24″ x 64.96″
Min. Sheet Size400 x 400 mm | 15.75″ x 15.75″500 x 600 mm | 19.69″ x 23.62″
Max. Pile Height (incl. pallet)1400 mm | 55.12″1500 mm | 59.06″
Min. Pile Height (incl. pallet)650 mm | 25.59″750 mm | 29.53″
Max. Blowing Length1300 mm | 51.18″1370 mm | 53.94″
Number of Blowers234
Max. Carrying Weight1,500 kg | 3,300 lbs.
Machine Weight2,500 kg | 5,500 lbs.3,642 kg | 8,050 lbs.4,100 kg | 9,050 lbs.



With an over 100-year legacy, The YOCO Group — originally founded under the Yawa brand — is a market leader and one China’s top three Auto-Platen Die Cutter manufacturers. Their product range includes Automatic Die Cutters in (4) sizes — 76cm (30″), 106cm (42″), 145cm (57″) and 165cm (65″). Also included in their portfolio are Die Cutters with Foil Stamping and Stripping capabilities in 76cm, 106cm, & 145cm size with an optional (5 minute foil cassette system). For quick changeover from dedicated Foil Stamping to Die Cutting & Stripping, offering dual utility in one one machine. YOCO also offers dedicated offline blanking machinery in 106cm formats. Their factory, located in Shanghai, China, spans over 320,000 square feet. Their products are sold both domestically and internationally, with over 60% exported. Currently, more than 1,000 of their machines are operating worldwide. Click here to view YOCO’s Partners Page for more information!
