Three-Knife Trimmer
Wohlenberg Trim-Tec 60e, Three-Knife Trimmer – WLB05
$375,000.00
Wohlenberg
Trim-Tec 60e
The Wohlenberg Trim-tec 60e is a tool-less setup, automated Three Knife Trimmer for the production of soft cover and hard cover perfect bound books. The Trim-tec’s easy-to-use Navigator HMI touchscreen, when combined with the optional smart Navi-desk, make this a quick setup, fast makeready machine. Discover German construction and reliability today!
Ready for Purchase

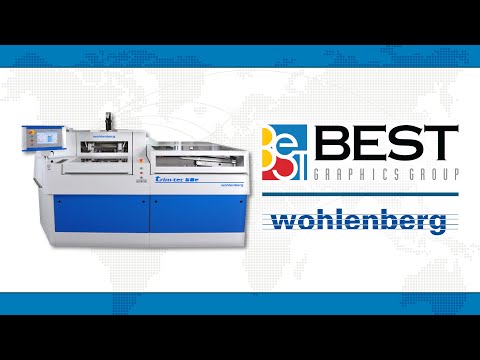

Watch Video
New! Wohlenberg Trim-tec 60e Automated 3-Knife Trimmer for Perfect Binding –
German construction and innovation. Makeready your Three Knife Trimmer, tool-lessly, in minutes!
The design and ergonomics of the Trim-tec 60e are to be celebrated. Generously designed covers allow a comfortable and quick overview. The Navigator operated by touch-screen and positioned in the central control section, can be swivelled and turned.
The clutch-free drive concept with dynamic-drive Technology provides, in connection with the robust and proven one-piece machine frame, a running smoothness beyond compare with at the same time maximum machine speed. The trim-tec 60e is an inline three-knife trimmer in the medium speed range and therefore perfectly matches with the Wohlenberg perfect binders City e, Vento and Quickbinder.
Standard Features –
- Inline three-knife trimmer with motorized adjustment
- Drive concept without clutch
- Clamping in dynamic-drive Technology
- Industry PC with TFT colour display and touch-screen function
- Graphically operator guidance Navigator
- Stronger swinging shear cut on all three knives
- Integrated counter stacker
- Head gauges (pneumatic)
- Automatic set-up with dynamic-drive Technology < 5 minutes
- Correction of all usual positioning parameters during ongoing production
- Quick-change system for front and side knives
- Automatic clamping for format plate holder and cutting table
- One piece machine frame
Optional Smart Navidesk –
Inquire about Wohlenberg’s optional Smart Navidesk, advanced technology that allows operators to “read” a book’s measurements in an automated way with specifications input into the Navigator touchscreen seamlessly.
| Mechanical Speed | 500 – 3,600 Cycles per hour |
|
Product Height – Untrimmed
|
140 – 370 mm | 5.51 – 14.56″ |
| Product Width – Untrimmed | 105 – 320 mm | 4.13 – 12.59″ |
| Product Height – Trimmed | 138 – 368 mm | 5.43 – 14.48″ |
| Product Width – Trimmed | 100 – 300 mm | 3.93 – 11.81″ |
| Head / Tail Trim | 1 – 25 mm | 0.04″ – 0.98″ |
| Front Trim | 0 – 24 mm | 0.00″ – 0.94″ |
| Pile Height | 5 – 70 mm | 1.96 – 2.75″ |
| OPTIONAL FORMATS | Small Format | Large Format |
| Product Height – Untrimmed | min. 105 mm |4.13″ | max. 440 mm | 17.32″ |
| Product Width – Untrimmed | min. 75 mm | 2.95″ | max. 320 mm | 12.60″ |
| Product Height – Trimmed | min. 100 mm | 3.94″ | max. 430 mm | 16.93″ |
| Product Width – Trimmed | min. 72 mm | 2.83″ | max. 310 mm | 12.20″ |
-
Wohlenberg Quickbinder 5-Clamp Perfect Binder — Best Graphics (USA)
-
Wohlenberg City e 6000 Perfect Binder — Best Graphics (USA)
-
Wohlenberg Vento Perfect Binder — Best Graphics (USA)
-
Wohlenberg Trim-Tec 60e Three Knife Trimmer — Best Graphics (USA)
-
Best Graphics (USA) - Wohlenberg Trim Tec 90e Three Knife Trimmer
-
Best Graphics (USA) - Wohlenberg Champion 7000 in production
-
Best Graphics Group - Wohlenberg Quickbinder PUR Perfect Binder w/Gauzing
-
VTS 01 1
Wohlenberg, manufactured in Verden, Germany, has been producing Perfect Binders, Gatherers and Three-Knife Trimmers for over 70 years. Having developed the first Perfect Binder and Three-Knife Trimmer, Wohlenberg is a global leader in developing and manufacturing quality Perfect Bindery equipment. Click here to view Wohlenberg’s Partners Page for more information!
