Fully Automated Folder Gluer with Straight-Line, Lock-Bottom, Double-Wall, & 4/6-Corner

Name: SCM SQ Series, Fully Automated Folder Gluer with Straight-Line, Lock-Bottom, Double-Wall, & 4/6-Corner - SCM03
SKU: SCM03

SCM SQ Series, Fully Automated Folder Gluer with Straight-Line, Lock-Bottom, Double-Wall, & 4/6-Corner – SCM03

$650,000.00

SCM

SQ Series

New

The SCM SQ Series is a high-speed Folding Gluer equipped with impressive features at a competitive price. With Straight-line, Lock-bottom, Double-wall, 4-corner, and 6-corner capabilities — it is highly optioned with the potential for fully automatic setup. The machine provides an incredible 10-minute, easily repeatable makeready time, and up to 30 minutes for 6-corner work. Automatic movement of the glue guns for easier operator set up makes the SQ Series an industry game-changer.

In Stock Inventory

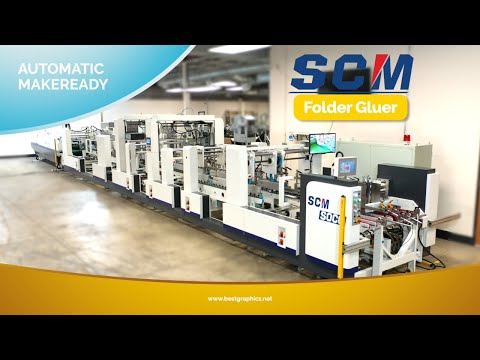

Watch Video

Item Number: SCM03 Categories: Folding & Gluing 4 & 6 Corner Folder Gluers Lock Bottom Straight Line

Overview
Technical
Video
Manufacturer
Resources

New! SCM Fully Automatic Folder Gluer for Sale –

Attract employee talent with a Folder Gluer that modernizes your Packaging company! Save money, and increase output in the process!

SCM’s SQ Includes Futuristic Automation Beyond Any Other Folder Gluer On the Market –

10-minute, easily repeatable makeready times
Up to 30 minutes maximum for 6-corner work.
Automatic movement of the glue guns for easier operator set up
Don’t believe us? Demo today at our Milwaukee, Wisconsin facilities!

Machine Benefits of a Folder Gluer from SCM and Best Graphics –

Standard features include an easily accessible open frame concept design with robust steel I-Beam construction, full servo control, retractable high-speed back hooks, and an operational speed of up to 700 meters per minute.

The main machine is controlled by an HMI interface that connects to a remote controller for convenient adjustments, making it exceptionally easy to use. The upper pressure bars can be micro-adjusted to accommodate different paper thicknesses. The machine’s unique design ensures stable operation even at high speeds, eliminating production loss.

For added flexibility, the movement of each carrier can be done manually, with numerical location indicators for quick adjustments. The main motor drive is powered by a 15KW inverter motor shaft and timing belt, which coordinates the movement of each section. Speed adjustments for the main machine, feeder section, and pressing conveyor are easily managed through ratio link movement. Remote ethernet diagnostics ensure maximum machine up-time.

What Options are Available with SCM Folder Gluers? –

Inline Windowing
Gyro Turning System
Inline Tape Application
Inline Print Inspection
Pre-Feeder Technology
Carton Packing Technology

In terms of market comparison, our SCM SQ 1100 Folding and Gluing machine is comparable to Bobst Expert/Masterfold lines but comes at a significantly lower price.

	*SQ-850*	*SQ-1100*	*SQ-1250*	*SQ-1450*
Size Formats	850 mm \| 33.5″	1100 mm \| 43.3″	1250 mm \| 49.2″	1450 mm \| 57.1″
Max. Speed	700 m/min. \| 2,297 ft./min.
Max. Backfold Speed	300 m/min.
Max. Cardboard	800 gsm
Flute Types	N, E, B & F
Machine Dimensions	64.6’ L x 14.1’ W x 5.0’ H

SCM, founded in Taiwan, is China’s largest manufacturer dedicated solely to the production of Folder Gluers. SCM is an industry leader in Folding Gluing technology offering world-class equipment in partnership with recognized global component sources. Nearly 1,000 SCM Folder Gluers are in production across the globe. Click here to view SCM’s Partners Page for more information!
