24" x 30" Die Cutter with Foil Stamping

Name: YOCO JY-76T, 24" x 30" Die Cutter with Foil Stamping - YCG03
SKU: YCG03

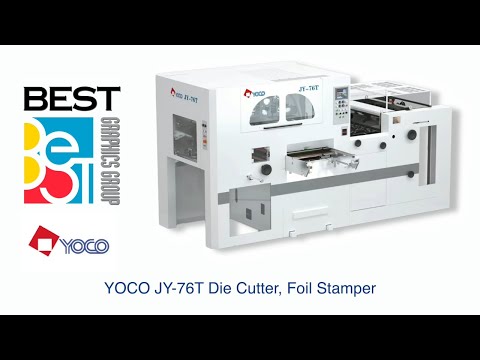

YOCO JY-76T, 24″ x 30″ Die Cutter with Foil Stamping – YCG03

$0.00

YOCO

JY-76T

New

The YOCO JY-76T Die Cutter with Foil Stamping provides an affordable, easy to operate, high quality, half-size die cutting solution for shorter-run commercial and digital print finishing requirements.

In Stock Inventory

Watch Video

Item Number: YCG03 Categories: Die Cutters Die Cutting With Foil Stamping & Embossing

Overview
Technical
Video
Manufacturer
Resources

Featuring a space-saving footprint with higher speed capabilities (up to 7,000 sheets per hour), the JY-76T Die Cutter with Foil Stamping provides opportunities for many to update their older cylinder department, reclaim the space, and capture larger-format and longer-run work at an economic price point.

YOCO is the world’s leader in half-size die cutting, and is the right choice for any customers looking for higher quality, higher productivity, and affordable finishing equipment.

Max. Sheet Size	600 x 760 mm \| 23.62″ x 29.92″
Min. Sheet Size	310 x 310 mm \| 12.20″ x 12.20″
Max. Cutting Size	580 x 750 mm \| 22.83″ x 29.53″
Max. Stamping Size	530 x 750 mm \| 20.87″ x 29.53″
Inside Chase	610 x 850 mm \| 24.02″ x 33.46″
Min. Gripper Margin	8 mm \| 0.31″
Max. Pressure	200 Tons
Max. Cutting Speed	7,000 Sheets per Hour
Max. Stamping Speed	6,000 Sheets per Hour
Heating Zones	10 Areas
Number of Foil Rollers	3
Max. Pile Height at Feeder	1100 mm \| 43.31″
Max. Pile Height at Delivery	750 mm \| 29.53″
Machine Dimensions	13.5′ L x 6.2′ W x 7.2′ H

With an over 100-year legacy, The YOCO Group — originally founded under the Yawa brand — is a market leader and one China’s top three Auto-Platen Die Cutter manufacturers. Their product range includes Automatic Die Cutters in (4) sizes — 76cm (30″), 106cm (42″), 145cm (57″) and 165cm (65″). Also included in their portfolio are Die Cutters with Foil Stamping and Stripping capabilities in 76cm, 106cm, & 145cm size with an optional (5 minute foil cassette system). For quick changeover from dedicated Foil Stamping to Die Cutting & Stripping, offering dual utility in one one machine. YOCO also offers dedicated offline blanking machinery in 106cm formats. Their factory, located in Shanghai, China, spans over 320,000 square feet. Their products are sold both domestically and internationally, with over 60% exported. Currently, more than 1,000 of their machines are operating worldwide. Click here to view YOCO’s Partners Page for more information!

Product Brochure

Die Cutting

YOCO JY-76T/86T, Die Cutter

View Document

Operation Manual

Die Cutting

YOCO JY-76E/76T, Die Cutter

View Document

Layout

Die Cutting

YOCO JY-76T, Die Cutter

View Document
