Automatic Sheet Stacker
Palamides Mitra 704, Automatic Sheet Stacker – PAL03
$105,000.00
Palamides
Mitra 704
In Stock Inventory

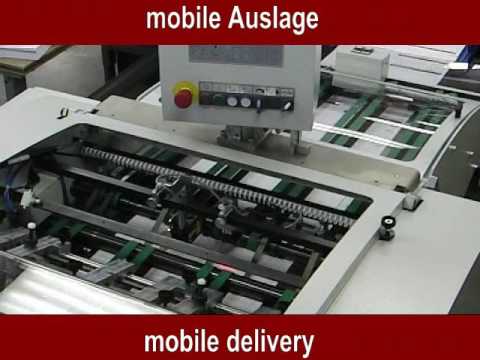

Watch Video- Machine Control with Touchscreen
- Is Mobile in Order to “Roll Up” to Multiple Different Units
- Precision Shingle Stream Separation
- Anti-static Device for Perfect Stacking
- Automatic Format Adjustment Direction
- Jogs Sheets for Perfect Stack
- Satellite User Panel at Infeed for Ease of Setup
- Operation Possible From the Left or Right
- Manual Cycle Activation
- Back Blow Device for Improved Stacking Quality
- Manual Ejection of Waste Sheets
- Optional Barcode Reader to Trigger Stack Change
- Optional Laser Counter for Shingle Stream
| Max. Output | 800 Stacks/Hr. |
| Number of Ups | 1 or 2 Up Production |
| Max Format | 30″ Wide x 14″ Length |
| Min Format | 4.75″ Wide x 4.75″ Length |
| Max. Stack Height | 7.75″ |
| Min Stack Height | 2 mm | 1/16″ |
| Infeed Height | 29.5″ – 37.5″ |
Palamides, manufactured in Stuttgart, Germany, has been producing automatic Banding Deliveries and Stacking Deliveries for over 45 years. With over 3,600 installs worldwide, Palamides is globally recognized in the Graphic Arts market. Click here to view Palamides’ Partners Page for more information!
